Universal Vertical Horizontal Milling Machine LM1450A by Hoton

2017 China New Design Grinding Machine - Universal Vertical Horizontal Ram Milling Machine LM1450A – Hoton

Short Description:

SWIVEL HEAD UNIVERSAL MILLING MACHINE FEATURES: LM-1450A universal swivel head milling machine is based on theLM1450, 2. Installation of rotary table 45 degrees, 3. Processing of a wide range, three-axes automatic feeds, 4. Large torque and strong power, 1.5KW, 5. Fast-moving 2000mm/min. 6. Spindle taper is ISO 50SPECIFICATIONS: MODEL UNIT LM1450A Table size mm 1600x360 T slot no./width/distance no 5/18/80 Max. load of Table kg 400 swivel angle of table ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

We have now sophisticated machines. Our solutions are exported to the USA, the UK and so on, enjoying a great reputation amid consumers for Cnc Lathe Tck46a , Horizontal Cnc Lathe , Radial Drilling Machine Z3050x16 , As a key enterprise of this industry, our company makes efforts to become a leading supplier, based on the faith of professional quality & worldwide service.

2017 China New Design Grinding Machine - Universal Vertical Horizontal Ram Milling Machine LM1450A – Hoton Detail:

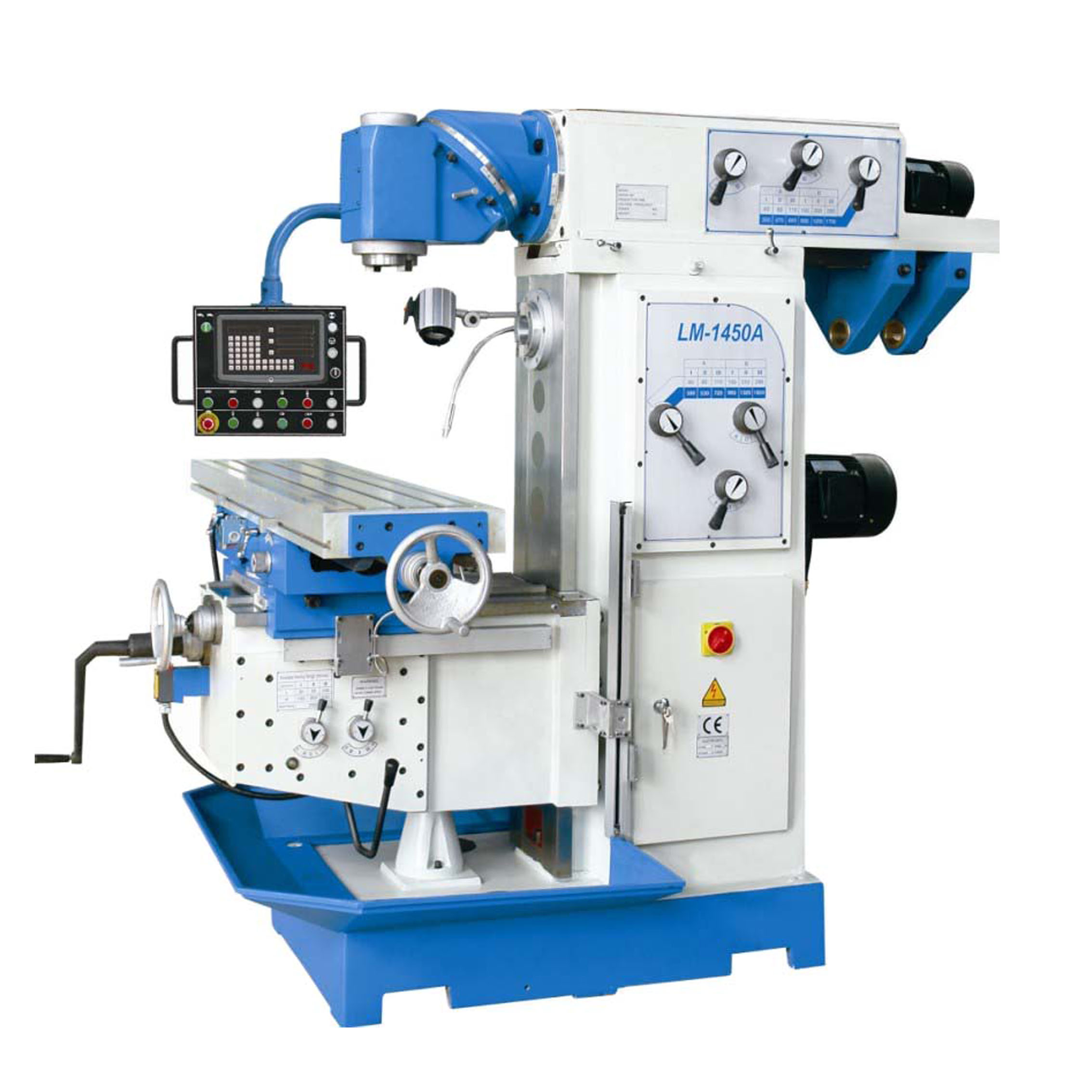

SWIVEL HEAD UNIVERSAL MILLING MACHINE FEATURES:

LM-1450A universal swivel head milling machine is based on theLM1450,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50SPECIFICATIONS:

MODEL	UNIT	LM1450A
Table size	mm	1600x360
T slot no./width/distance	no	5/18/80
Max. load of Table	kg	400
swivel angle of table	degree	±45º
table Longitudinal travel(manual/auto)	mm	900
table Cross travel (manual/auto)	mm	320
table Vertical travel(manual/auto)	mm	400
Swivel angle of milling head		360º
Spindle taper		ISO50
spindle speed /step -- Vertical	rpm	60-1800
--Horizontal	rpm	60-1700
Distance from vertical spindle axis to column surface	mm	160-800
Distance from vertical spindle nose to table surface	mm	200-600
Distance from horizontal spindle axis to table surface	mm	0-400
Distance from horizontal spindle axis to ram bottom	mm	200
ram travel	mm	600
Longitudinal/cross feed	mm / min	30~630(X,Y)
Vertical feed /step	mm/min	30~630(Z)
Longitudinal/cross rapid speed	mm / min	2000 (XY)
Rapid Traverse vertical	mm/min	2000 (Z)
main motor	kw	4
(X/Y/Z) feed motor	kw	1.5
coolant motor	kw	90W
overall dimension	cm	207x202.5x220
Machine weight	kg	2650

Product detail pictures:
