2017 wholesale price Machine Center - Powerful Electro Magnetic Chuck X91 Series – Hoton Detail:

The main usage and characteristic of the electromagnetic chuck:

X91 Heavy-duty Rectangular Electromagnetic Chuck This series of electromagnetic chuck is used for milling machine and planing machine. The features of this series : powerful suction, safe and reliable to use, convenient to fix workpiece that not suitable for mechanical clamping .The type of X91F products can prevent milling and planer knives magnetization, to improve the processing accuracy. The suction force is≥150N/cm²
Quality Standards: ISO9001-2000 quality management system
X91 Heavy-duty Rectangular Electromagnetic Chuck Parameters

TYPE	DIMENSIONS (MM)			PANEL HEIGHT (MM)	POLE PITCH (MM)	CURRENT (A)	POWER (W)	NET WEIGHT (KG)
X91 200×560	560	200	108	30	22(18+4)	1.6	176	65
X91 200×630	630	200	108	30	22(18+4)	1.6	176	70
X91 300×680	600	300	110	30	22(18+4)	2.2	242	120
X91 300×800	800	300	100	30	22(18+4)	3	330	135
X91 300×1000	1000	300	110	30	22(18+4)	3.2	352	160
X91 300×1000	1000	300	120	26	39(33+6)	4	440	180
X91 320×800	800	320	110	30	22(18+4)	3	330	145
X91 320×1000	1000	320	110	30	22(18+4)	4	440	175
X91 320×1250	1250	320	110	30	22(18+4)	4.5	495	225
X91 320×1600	1600	320	115	30	22(18+4)	5	550	240
X91 400×800	800	400	110	30	22(18+4)	3	330	180
X91 400×1000	1000	400	110	30	22(18+4)	4	440	240
X91 400×1000	1000	400	120	26	39(33+6)	5	550	255
X91 400×1250	1250	400	120	30	22(18+4)	5	550	250
X91 500×1000	1000	500	110	26	22(18+4)	8	880	290
X91 500×2000	200	500	120	30	22(18+4)	10	1100	580
X91 500×1000	1000	500	110	30	22(18+4)	5	550	280
X91 600×1000	1000	600	110	33	22(18+4)	6	660	340
X91 600×1000	1000	600	120	26	39(33+6)	8	880	350
X91 800×1000	1000	800	120	26	39(33+6)	10	1100	580

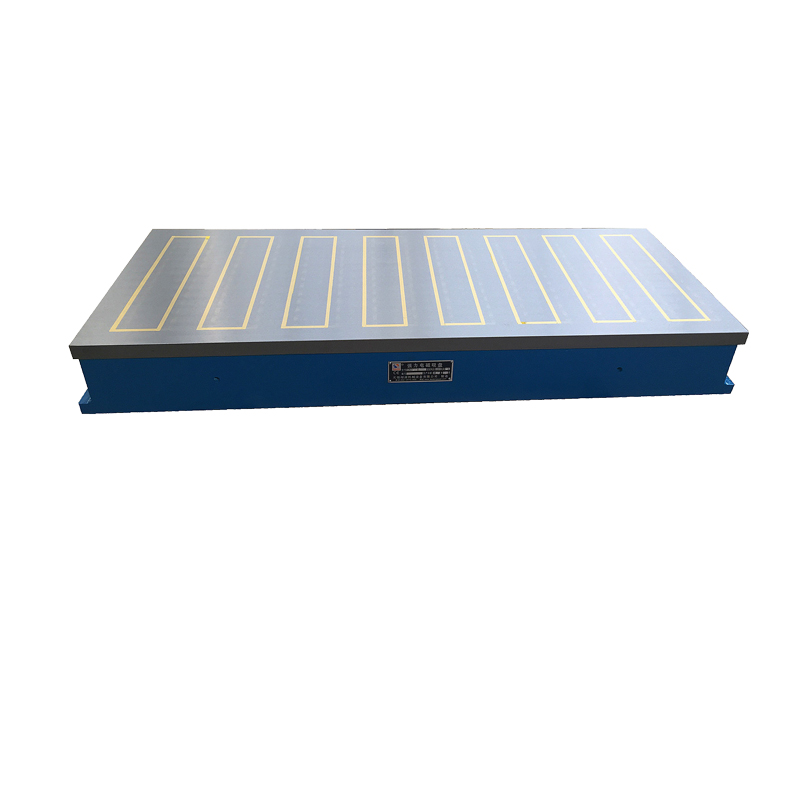

Product detail pictures:
