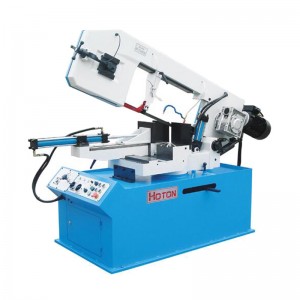

CNC Band Saw GHS4235 GHS4240 GHS4250
METAL CNC BAND SAW MACHINE FEATURES:
- Touch screen type control panel, sawing parameters digital setting 5 groups of sawing data;
2. PLC controller, flexible setting and conversion, combination between hand operation and automatic operation;
3. Double column structure vertical lifting high stability;
4. Cutting speed adopts hydraulic control, stepless speed regulation;
5. Suited to batch saw cutting materials.
SPECIFICATIONS:
|
MODEL NO |
GHS4228 |
GHS4235 |
|
Cutting capacity |
280-280×280 |
350-350×350 |
|
Blade size |
3505×27×0.9 |
4115×34×1.1 |
|
Blade speed |
27 45 69 |
27 45 69 |
|
Clamping type |
Hydraulic |
Hydraulic |
|
Main motor power |
3 |
3 |
|
Motor hydraulic |
0.75 |
0.75 |
|
Coolant pump |
0.04 |
0.04 |
|
Overall dimension |
1860×2400×1400 |
2000×2500×1500 |
|
Model |
GHS4240 |
|
Cutting capacity |
Φ400-400x400 |
|
Blade size |
5000×41×1.3mm |
|
Blade speed |
27\45\69 |
|
Clamping type |
Hydraulic |
|
Main motor power |
4 |
|
Motor hydraulic |
0.75 |
|
Coolant pump |
0.09 |
|
Overall dimension |
2400×1100×1900 |
| STANDARD EQUIPMENT | OPTIONAL EQUIPMENT |
| PLC control1 saw blade belthydraulic workpiece clampingbundle visematerial support stand
Coolant system Work lamp
|
Automatic blade breakage controlFast drop protection deviceHydraulic blade tensionAutomatic chip removal deviceVarious blade linear speed
Blade protection covers Wheel cover opening protection CE standard electrical equipment
|
