Chinese wholesale Milling Drilling Machine - CNC Flat Bed Lathe Machine CK6132 – Hoton Detail:

CNC LATHE FEATURES:

The surface of guideway is delt with quenching and precision grinding, its precision has good stability
Simple manipulation and low maintenance cost

SPECIFICATONS:

MODEL	CK6132×500/750
Swing over bed	330mm
Swing over carriage	148mm
Max length of work piece	450/700mm
Spindle bore	38mm
Taper of spindle bore	MT5
External taper of spindle	D1-4
Spindle speed number
Range of spindle speed	100~875r/min 875~2500r/min
Power of main motor	3kw
X - axle travel	190mm
Z - axle travel	500/750mm
X-axle rapid speed	2.5m/min
Z -axle rapid speed	5m/min
X-direction min setting unit	0.01mm
Z-direction min setting unit	0.001mm
Nos. of tool position	4 Station
Max size of tool holder	16×16mm
Diameter of tailstock sleeve	45mm
Travel of tailstock sleeve	120mm
Taper of tailstock sleeve	MT3
Net weight of machine tool	610/650kg
Gross weight of machine tool	740/780kg
Sizes of package	168×114×201cm/193×114×201cm

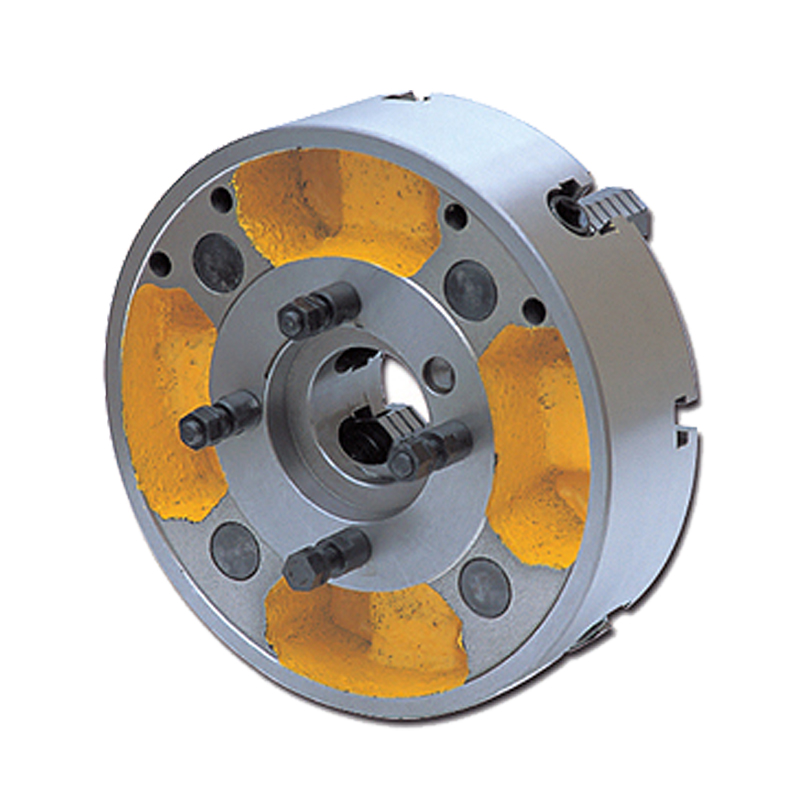

OPTIONAL ACCESSORIES	STANDARD ACCESSORIES
GSK980TAI , SIEMENS802C 6PoSltloneletr1Cturret Power chuck	External chuck jaws Reduction sleeves Dead center Oil gun Wrenches

Product detail pictures:
