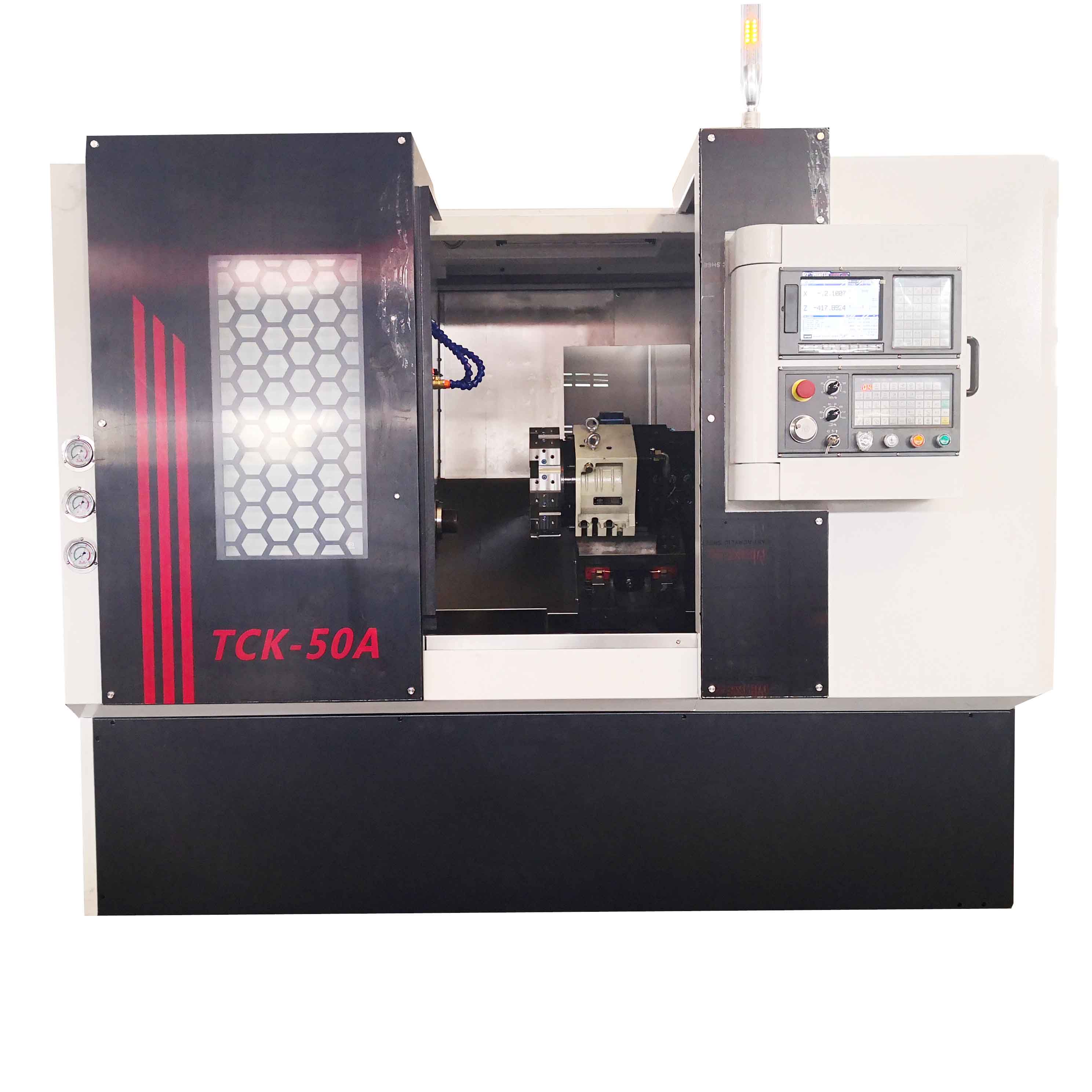

CNC Slant Lathe Machine TCK50A
Product main features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
| Model | Unit | TCK50A |
| Max.swing over bed | mm | 560 |
| Max.swing over cross slide | mm | 260 |
| Max.workpiece length | mm | 350/500 |
| Spindle unit | mm | 200 |
| The spindle nose(optional chuck) | A2-6 | |
| The spindle motor power | kw | 7.5/11 |
| Max.spindle speeds | rpm | 3500 |
| Spindle bore | mm | Φ66 |
| Bar capacity | mm | 55 |
| The x/z axis screw specifications | 3210/4010 | |
| The x axis limit stroke | mm | 240 |
| The z axis limit stroke | mm | 400/540 |
| The x axis motor torque | N.m | 7.5/10 |
| The z axis motor torque | N.m | 7.5/10 |
| X/z axis repeat position accuracy | mm | +/-0.003 |
| Tool turret (optional) | 100-8T/12T | |
| Turret center height dimensions | mm | 100 |
| Hydraulic quill dia. | mm | 70 |
| Hydraulic quill taper | MT5 | |
| Hydraulic tailstock travel | mm | 200/450 |
| Machine dimensions(L*W*H) | mm | 2600*1850*2000 |
| N.W. | kg | 4500 |
