Factory selling Cnc Controlled Flatbed Lathe - K72 SERIES FOUR-JAW INDEPENDENT TYPE C – Hoton Detail:

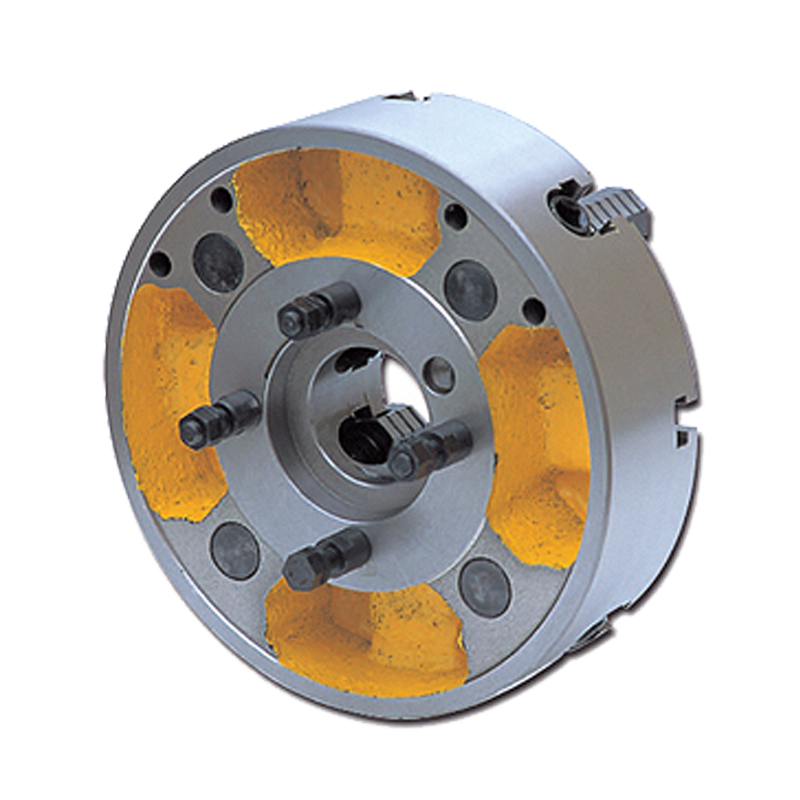

K72 SERIES FOUR-JAW INDEPENDENT TYPE C

K72 series Four-jaw independent chuck adopts short cylinder and short circular cone shape,Short circular cone shape can be subdivided into two types according to the way of joining with the rod of machine tool:Type A(joined with screw),Type C(bolt locking joint),Type D(pull rod,cam locking joint)

SPECIFICATIONS:

Model Size D	short-taper No	D1	D2	D3	H	H1	h	h1	h2	d1	Z-d
k72160	4	63.513	85	45	93	65	13	10	6.5	14.7	3-M10
k72200	4	63.513	85	56	107	75	13	10	6.5	14.7	3-M10
K72250	4	63.513	85	61	120	80	-	10	6.5	14.7	3-M10
K72315	4	63.513	85	61	138	90	-	10	6.5	14.7	3-M10
K72320
K72350
K72200	6	106.375	133.4	56	107	75	16	13	6.5	19.5	4-M12
K72250	6	106.375	133.4	75	120	80	16	13	6.5	19.5	4-M12
K72315	6	106.375	133.4	95	138	90	16	13	6.5	19.5	4-M12
K72320
K72350
K72400	6	106.375	133.4	95	143	95	16	13	6.5	19.5	4-M12
K72500	6	106.375	133.4	103	160	105	-	13	8	19.5	4-M12
K72250	8	139.719	171.4	75	120	80	18	14	8	24.2	4-M16
K72315	8	139.719	171.4	95	138	90	18	14	8	24.2	4-M16
K72320
K72350
K72400	8	139.719	171.4	125	143	95	18	14	8	24.2	4-M16
K72500	8	139.719	171.4	136	160	105	-	14	8	24.2	4-M16
K72315	11	196.869	235	95	138	90	20	16	10	29.4	6-M20
K72320
K72350
K72400	11	196.869	235	125	143	95	20	16	10	29.4	6-M20
K72500	11	196.869	235	160	160	105	20	16	10	29.4	6-M20
K72500	15	285.775	330.2	160	160	105	21	17	10	35.7	6-M24

Product detail pictures:
