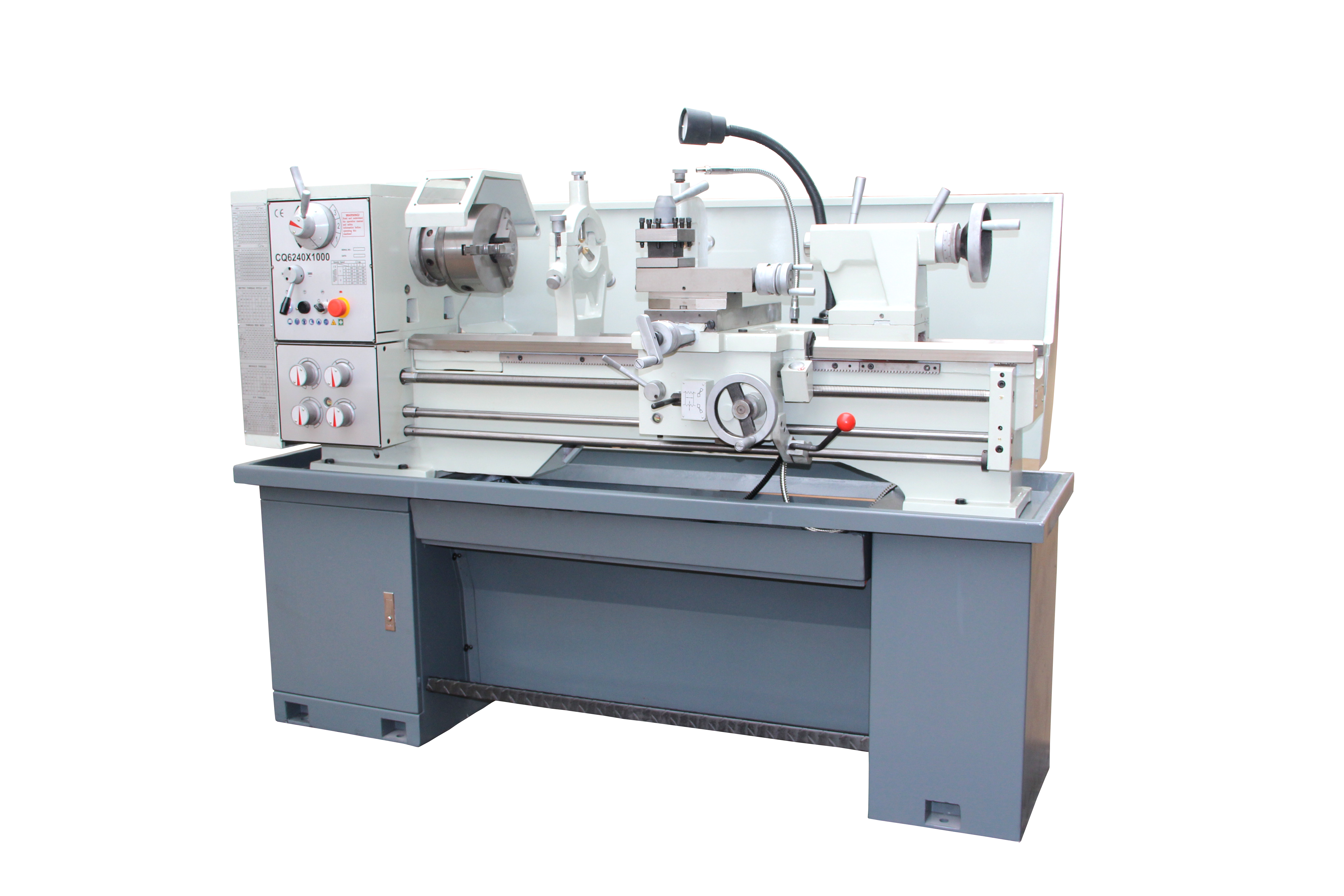

Horizontal Metal Turning Lathe Machine CQ6240
| MODEL | CQ6240 |
| Swing over bed | Φ400mm |
| Swing over cross slide | Φ250mm |
| Swing in gap(D×W) | 520mm×100mm |
| Height of center | 200mm |
| Distance between centers | 1080mm |
| Turning Length | 700-750mm |
| Width of bed | 218mm |
| Max. section of cutting tool | 20mm×20mm |
| Guide Length of carriage | 350-365 |
| Graduation of Longitudinal scale on apron boxhand wheel | 0.2mm |
| Total travel of cross slide | 230mm |
| Graduation of scale at cross slide spindle | 0.025mm |
| Width of cross-slide | 118- 140mm |
| Compound slide travel | 68-100mm |
| Graduation of scale on compound slide spindle | 0.05mm |
| Width of top slide | 110mm |
| Total travel of top slide | 120mm |
| Spindle diameter in front bearing | 60mm |
| Spindle bore | 52mm |
| Taper bore according to DIN 228 (shortened) | MT-4 |
| Max. diameter of face plate and clamping disk | 315mm |
| Spindle nose | D1-5 |
| Spindle speeds range | 65-1800 R.P.M |
| Leadscrew diameter&thread | 24mm×4 T.P.I or pitch 6mm |
| Threads imperial pithches | 4-60 T.P.I |
| Threads metric pithches | 0.4-16mm |
| Longitudinal feeds(imperial/metric) | 0.0021"-0.0508"/0.0527-1.2912 |
| Cross feeds(imperial/metric) | 0.00043"-0.0109"/0.011-0.276 |
| Total travel of tailstock quill | 110mm |
| Diameter of center sleeve | Φ52mm |
| Taper socket | DIN 228 MY3 |
| Scale graduation on center sleeve | 1mm |
| Scale ring at tail stock spindle, scale | 0.05mm |
| Taper tailstock quill | M.T.#4 |
| Cross Travel | 10MM |
| Number of speed range | 2x8 |
| Speed range A | (50-350) rev/min 8 Speeds |
| Speed range B | (250-2000) Rev/min 8 speed |
| Sound power level according to Din 45635-16max | 93 db (a) |
| Spindle drive motor | 1.5KW（2.0HP） |
| Coolant pump motor | 4/75HP(40W) |
| Packing dimension | 1940×890×1040 |
| N.W/GW | 640/750KG |
Standard Accessories:
• Drive plate as per spindle dia 160mm: 1 Nos.
• Four Jaw independent chuck dia 160mm: 1 Nos.
• Three Jaw self-centering chuck dia 160mm: 1 Nos.
• Quick-change tool post: 2 Nos.
• Machine Lamp: 1 Nos.
• Revolving center: 2 Nos.
• Set of collets 15Nos (5mm to 20mm in step of 1mm): 1 Nos.
• Dog Carriers Dia. 20 Dia. 30: 2 Nos.
• Collet holders:1 Set
• Splash Guards
• Tools Kit: 1 Set
