PriceList for Vertical Lathe - Universal Milling Drilling Machine ZX6350ZA – Hoton Detail:

DRILLING MILLING MACHINE:

Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
SPECIFICATIONS:

MODEL	UNIT	ZX6350ZA
Spindle taper		MT4/ISO40
Distance vertical spindle to table	mm	100-400
Distance horizontal spindle to table	mm	0~300
Distance spindle to column	mm	200~550
Spindle seeds range	r/min	(8 steps)60-1500(vertical) (12 steps)40-1300(horizontal)
Automatic Feed Series sleeve	mm	120(vertical)
Table size	mm	1250×320
Table travel	mm	800/300/300
Distance horizontal spindle to arm	mm	175
Table feeds range(x/y)	mm/min	22-555(8 steps)(max.810)
T of table (no./width/distance)	mm	3/14/70
Main motor	kw	0.85/1.5(vertical);2.2(horizontal)
Motor of table power feed	w	750
Coolant pump motor	w	40
N.W/G.W.	kg	1450/1600
Overall dimension	mm	1700×1480×2150

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches	DRO on X, Y, Z--AXIS. Universal dividing head. Rotary worktable. Clamping kit.

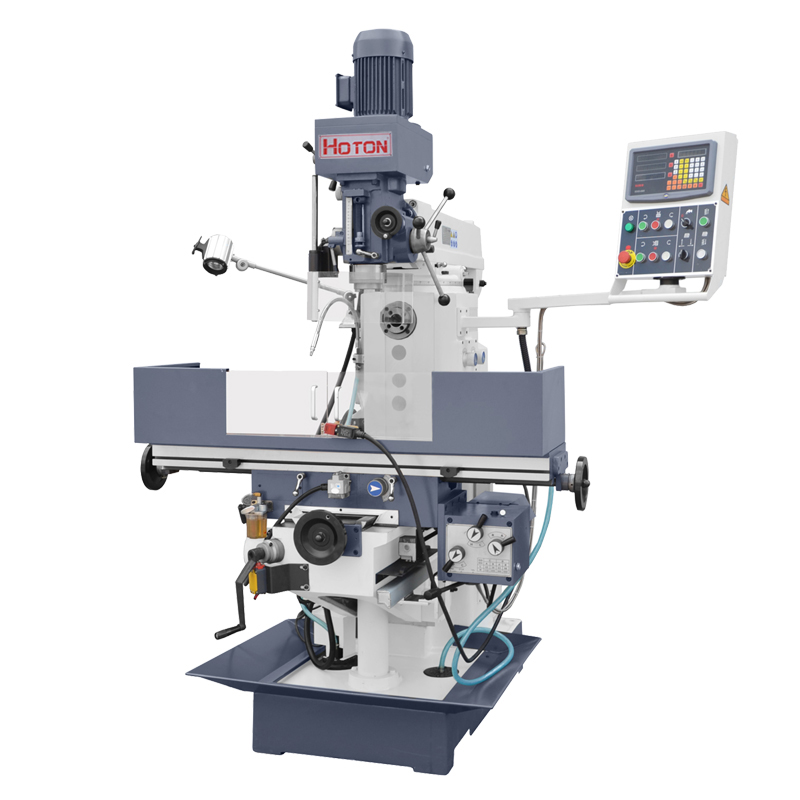

Product detail pictures:
