SPECIFICATIONS

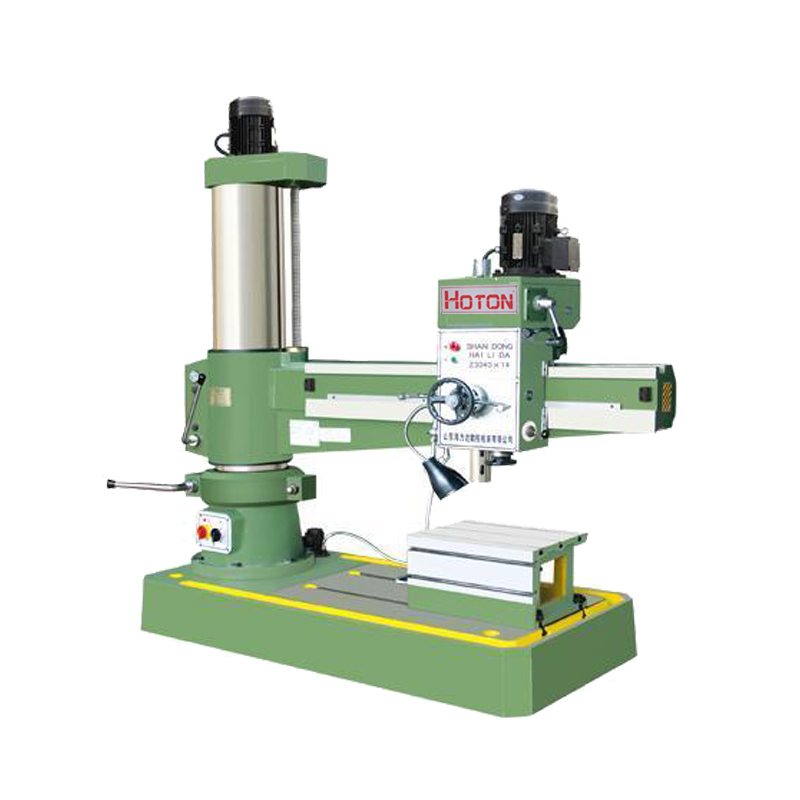

Z3040X14/III

Max.drilling dia(mm)

40

Distance from spindle axis to column surface (mm)

350-1370

Headstock travel (mm)

1015

Distance from spindle nose to table surface (mm)

260—1210

Spindle taper（MT）

4

Spindle speed steps

16

Spindle speeds range(r.p.m)

32-2500

spindle travel (mm)

270

Spinde feeding steps

8

Spindle feeding range(mm/r)

0.10-1.25

Rocker vertical moving speed(mm/min)

1.27

Rocker rotary angle

±180°

Maximum resistance to the spindle(N)

12250

Main motor power(kw)

2.2

Movements motor power (kw)

0.75

N.W/G.W(Kg)

2200

Dimension machine（L×W×H） (mm)

2053 x820x2483
