Heavy F12 Series semi-universal dividing head is one of the most important attachment for big milling machine. It can be used for simple indexing and dividing circle into any equal parts, etc.

ITEMS		F12260	F12300		F12400	F12500	F121000
Center height mm		260	300		400	500	1000
Swivel angle of spindle from horizontal to upward		≤95°
Horizontal position(downward)		≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°
Min. reading of vernier		10”
Worm gear ratio		1:40
Taper of spindle bore		MT6	MT6		MT6	MT5	MT5
Width of locating key mm		18/20	18/20		18/20	22	22
Dia.of short taper of spindle nose for mounting flange mm		Φ82.563	Φ82.563		Φ82.563	Φ106.375	Φ212.375
Numbers of hole in dividing plate	1st plate	24,25,28,30,34,37,38,39,41,42,43
	2nd plate	46,47,49,51,53,54,57,58,59,62,66
Individual indexing error of the spindle for one complete revolution of dividing handle		80”		80”	80”	500	1000
Cumulate error at any 1/4 periphery of spindle		±70”		±70”	±70”		±1”
Max. bearing Kg		380	380		380	100	500

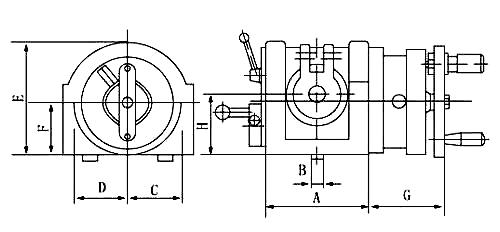

DIMENSIONAL SKETCH

ACCESSORIES:
1.Tailstock 2.Dividing plate 3.Flange 4.3-jaw chuck 5.Round Table(optional)
