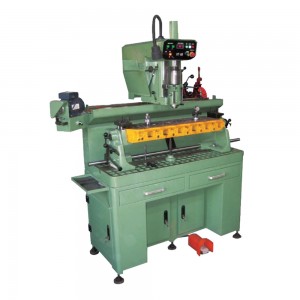

Valve Guide and Valve Seat Renewing Machine VSB-60
|
Model |
|
|
Working Table Dimensions (L * W) |
1245 * 410 mm |
|
Fixture Body Dimensions (L * W * H) |
1245 * 232 * 228 mm |
|
Max. Length of Cylinder Head Clamped |
1220 mm |
|
Max. Width of Cylinder Head Clamped |
400 mm |
|
Max. Travel of Machine Spindle |
175 mm |
|
Swing Angle of Spindle |
-12° ~ 12° |
|
Rotating Angle of Cylinder Head Fixture |
0 ~ 360° |
|
Conical Hole on Spindle |
30° |
|
Spindle Speed (Infinitely Variable Speeds) |
50 ~ 380 rpm |
|
Main Motor (Converter Motor) |
Speed 3000 rpm（forward and reverse） 0.75 kW fundamental frequency 50 or 60 Hz |
|
Sharpener Motor |
0.18 kW |
|
Sharpener Motor Speed |
2800 rpm |
|
Vacuum Generator |
0.6 ≤ p ≤ 0.8 Mpa |
|
Working Pressure |
0.6 ≤ p ≤ 0.8 Mpa |
|
Machine Weight (Net) |
700 kg |
|
Machine Weight (Gross) |
950 kg |
|
Machine External Dimensions (L * W * H) |
184 * 75 * 195 cm |
|
Machine Packing Dimensions (L * W * H) |
184 * 75 * 195 cm |
