Short Description:

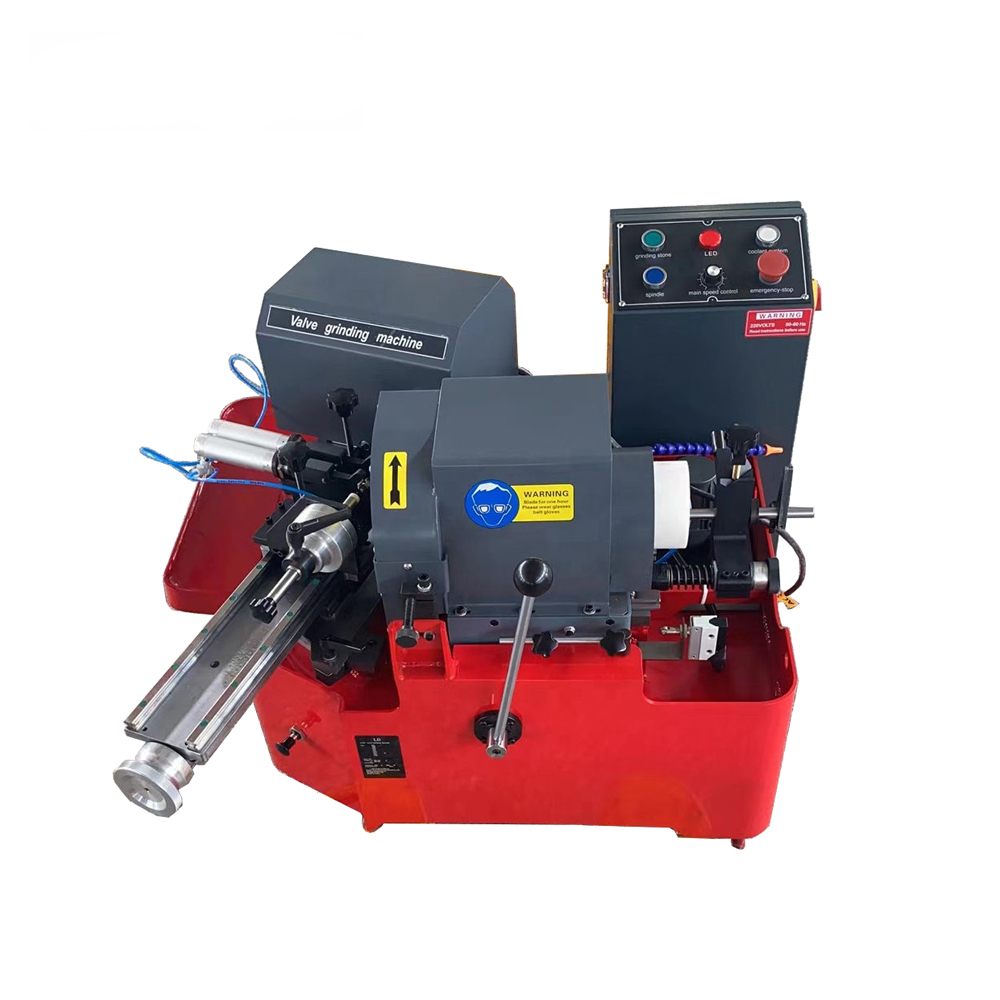

Model Unit LD100A Valve stem dia. mm 3.5-20 Valve head dia. mm 12-100 Valve length mm 70-450 Angle grinding range degree 10-57 Main wheel diameter mm 200 Cup wheel diameter mm 100 Main wheel width mm 15 Grinding wheel travel mm 90 Valve feed travel mm 90 Spindle motor Power w 750 Speed rpm 3600 Valve driving motor Power w 180 Speed rpm 120-750 Coolant motor Power w 100 Power supply KVA-V-HZ 380V 50HZ 3Phase220V 60HZ 3Phase Air supply max. bar Max 6 Pa...
