Short Description:

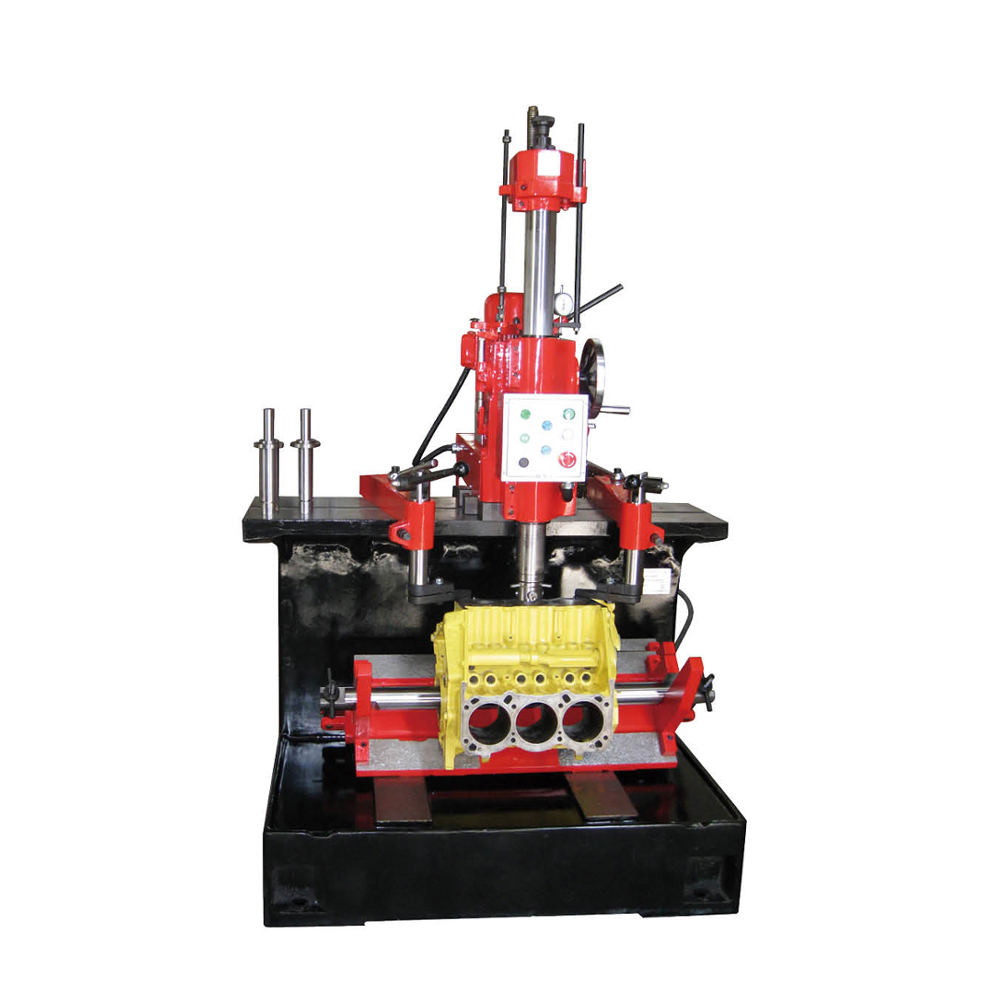

Model TB8016 Boring diameter 39 – 160 mm Max boring depth 320 mm Boring head travel Longitudinal 1000 mm Transversal 45 mm Spindle speed (4 steps) 125, 185, 250, 370 r/min Spindle feed 0.09 mm/s Spindle quick reset 430, 640 mm/s Pneumatic pressure 0.6 < P < 1 Motor output 0.85 / 1.1 Kw V-block fixture patented system 30° 45° V-block fixture patented system (Optional accessories) 30 degree, 45 degree Overall dimensions 1250×1050×1970 mm N.W./G.W. 1300/1500kg...
